Printed Circuit Board (PCB) assembly is a meticulous process that requires careful attention to detail, from component placement to soldering. Two critical elements that ensure reliable solder joints and overall board performance are solder paste and flux. Although they share some similarities in promoting solder connections, they serve distinct purposes in the assembly process. In this article, we’ll explore the roles of solder paste and flux in PCB assembly, highlight their key differences, and show how selecting the right materials can significantly boost product quality and reliability.
Introduction
PCB assembly may appear straightforward on the surface: place components onto a PCB and heat them until the solder melts. In reality, each step relies on precise materials and methods to avoid common defects such as solder bridging, cold joints, or incomplete wetting. Solder paste is a combination of solder alloy particles and flux, while flux can also be used on its own as a separate agent to clean surfaces and facilitate solder flow. Understanding the nuance between these two substances is the first step toward ensuring you have a reliable PCB assembly process.
Understanding Solder Paste
Composition and Types
Solder paste is a semi-solid mixture composed of tiny alloy spheres—commonly made from tin, lead, silver, or copper—suspended in a flux-based vehicle. This paste is specifically engineered to stick to the PCB’s copper pads before reflow. Depending on your application, you may opt for lead-free pastes (commonly SAC alloys like SnAgCu) or leaded pastes (like SnPb). Lead-free pastes are increasingly popular due to environmental and regulatory considerations (e.g., RoHS compliance), but leaded pastes are still used in specific industries that require lower melting temperatures and established joint reliability.
How Solder Paste Is Applied
Solder paste application commonly involves a stenciling process:
- Stencil Placement: A stainless-steel stencil with laser-cut apertures is placed over the PCB.
- Paste Deposition: Solder paste is then spread across the stencil using a squeegee, filling the apertures exactly where components will be placed.

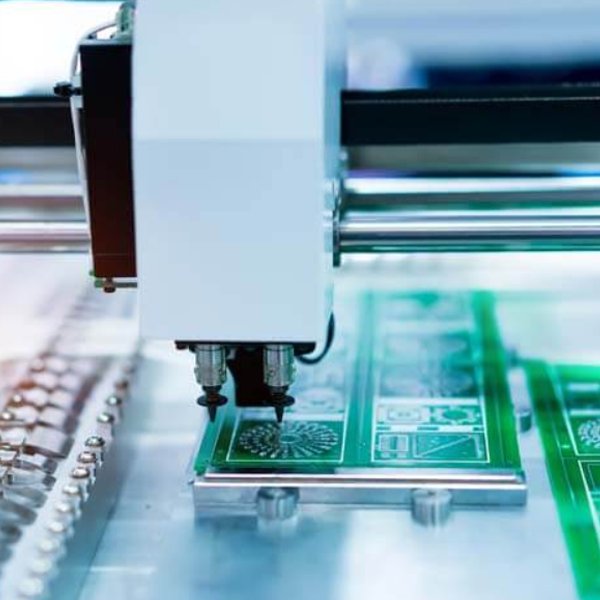

- Component Placement: Once the paste is deposited, components are positioned on top, with the paste acting like a temporary adhesive.
- Reflow Soldering: The board is heated in a controlled oven, causing the solder particles within the paste to melt and form permanent joints between components and pads.
Proper time-temperature profiles are crucial in reflow soldering, ensuring adequate wetting and minimal occurrence of defects.
Understanding Flux
Purpose of Flux in Soldering
Flux, in its pure form, is a chemical agent whose primary job is to reduce or eliminate oxidation on metal surfaces, promoting better solder wetting. When heated, flux reacts with metal oxides present on component leads and PCB pads, cleaning them away and preventing new oxides from forming. This process ensures that molten solder can flow freely and form a strong metallurgical bond.
Types of Flux
- Rosin-Based Flux: Derived from natural resin, rosin flux is popular for manual soldering but can leave behind residues that may need cleaning.
- Water-Soluble Flux: Easier to remove post-soldering by simply washing with water. This flux is often used in high-volume, automated processes.
- No-Clean Flux: Leaves very little residue, eliminating the need for expensive cleaning steps. Commonly used in consumer electronics where thorough cleaning is not always required.
Each flux type has its unique benefits and is suitable for specific environments and product requirements.
Key Differences Between Solder Paste and Flux
- Composition:
- Solder Paste: A mixture of metal alloy powder and flux.
- Flux: Contains only chemical agents for cleaning and deoxidizing surfaces, without metal particles.
- Application:
- Solder Paste: Typically deposited via stenciling or jet printing onto the PCB before component placement.
- Flux: Can be brushed on, sprayed, or used in wave soldering processes.
- Functional Roles:
- Solder Paste: Provides both the solder material and the cleaning agent in one, primarily used in surface-mount assembly.
- Flux: Primarily a cleaning agent, especially handy in through-hole or manual touch-up soldering processes.
- Cost Considerations:
- Solder Paste: Can be more expensive due to the presence of fine metal particles, specialized storage (often refrigerated), and a shorter shelf life.
- Flux: Tend to be more economical but require additional steps if solder wire or solder bars are used separately.
Understanding these differences helps manufacturers optimize their assembly processes for cost, reliability, and throughput.
The Role of TriWin Circuits in Reliable PCB Manufacturing
As a professional PCB manufacturer established in 2015, TriWin Circuits deeply understands the nuances of solder materials and flux agents required for high-quality PCB assemblies. Operating a 10,000-square-meter factory in Huizhou, Guangdong Province, China, TriWin is backed by over 220 experienced experts, engineers, and technicians, delivering an annual production capacity of approximately 250,000 square meters.
Comprehensive Quality Control
TriWin is ISO9001, IATF16949, ISO14001, and UL certified, meaning it upholds stringent industry standards for quality and environmental management. This is crucial for ensuring that PCBs are manufactured with robust materials, including top-grade solder mask inks and reliable plating processes, leading to hassle-free assembly.
Versatile PCB Solutions
Whether you need single-layer, double-layer, multilayer, HDI, rigid-flex, or metal-based PCBs (e.g., aluminum or copper-based boards), TriWin Circuits can deliver. By sourcing premium materials from brands like Shengyi, ITEQ, Kingboard, and using Sun Ink, TriWin ensures superior durability and performance across diverse applications—from automotive lighting and BMS systems to medical instruments and industrial control systems.
With advanced manufacturing equipment like automated PTH lines, decontamination-plating-etching lines, LDI exposure machines, screen printers, and more, TriWin guarantees precise prototyping and timely production of small to medium batches. This level of expertise and technological investment goes hand-in-hand with choosing the right solder paste and flux for each project’s specific requirements.
Tips for Choosing the Right Solder Paste and Flux
- Consider Your PCB Design:
- High-density boards with fine-pitch components may require a solder paste with a specific powder size and flux chemistry.
- Assess Application Environment:
- Product usage conditions (e.g., extreme temperatures, moisture, or mechanical stress) can dictate whether a no-clean or water-soluble flux is appropriate.
- Regulatory Requirements:
- Lead-free regulations (RoHS) might limit your choices, pushing you toward tin-silver-copper (SAC) alloys.
- Automotive or medical applications often demand high-reliability flux formulations.
- Budget and Cost Analysis:
- High-performance paste or specialized flux can be more expensive but may reduce defect rates and long-term warranty costs.
- Seek Professional Guidance:
- Consult experts—like the engineering teams at TriWin Circuits—to help select solder materials optimized for your product’s performance and longevity.
Conclusion
From initial component placement to final reflow soldering, both solder paste and flux play pivotal roles in PCB assembly. While solder paste integrates flux with solder particles for a seamless one-step placement process, standalone flux serves primarily to eliminate oxidation and ensure that solder can form robust joints. By understanding their unique functions and selecting the correct combination, you can significantly reduce defects, improve product reliability, and optimize your manufacturing costs.
If you’re looking to partner with a reliable PCB manufacturer that understands how critical these materials are to your assembly process, TriWin Circuits is here to help. With certified quality control systems, a wide range of PCB solutions, advanced equipment, and excellent customer service, TriWin stands ready to support you every step of the way—offering both technical guidance and top-quality PCBs that help your products shine in the marketplace.Ready to take your PCB assembly to the next level? Reach out to TriWin Circuits today to explore how our expertise and high-reliability PCB offerings can streamline your production and boost your product’s performance. Your success is our priority, and we strive to deliver on our promise of top-tier quality and outstanding service in every project we undertake.
